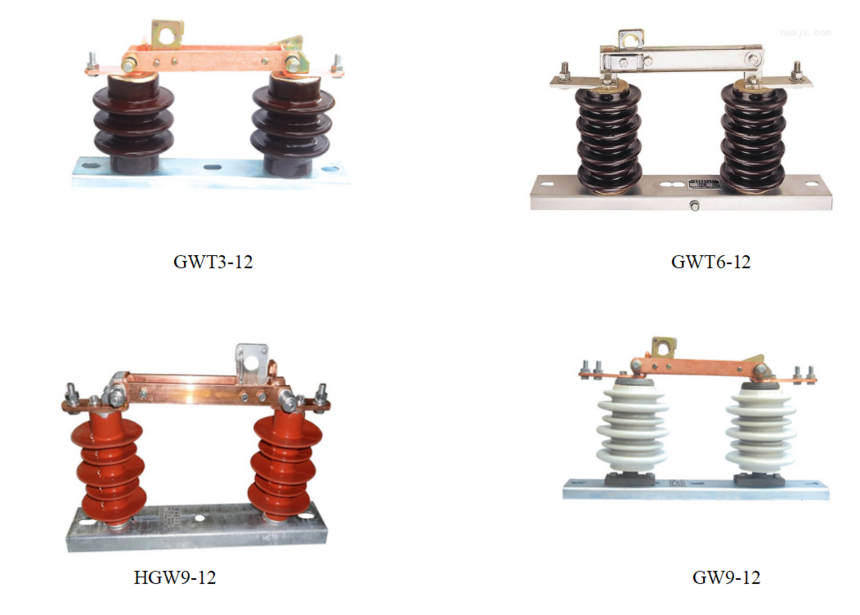

Outdoor High Voltage Disconnecting Switch

Outdoor High Voltage Disconnecting Switch is suitable for AC power grid system with rated voltage 3.6 kV and above and operating frequency 50 Hz and below. It is a switching appliance with simple structure. In general, it may only be used to switch on and off when the power grid is disconnected, or switch on and off the small current circuit that meets the requirements.

The product can be divided into general type and stain resistant type in terms of using environment. It should be installed in a place with ambient temperature from -40¡ãC to +40¡ãC, and altitude not more than 1,000 m.

Execution standard of product: GB/T1985-2014 High Voltage AC Disconnectors and Earthing Switches.



Main technical parameters

Model

Standard system voltage kV

Rated current

A

1.2/50 ¦Ìs lightning impulse withstand voltage

(peak value)

kV

1 min power frequency

withstand voltage

(effective value)

kV

4 s thermal stabilization current

(effective value)

kA

Dynamic stabilization current

(peak value) kV

External insulation pollution grade

Matched operating mechanism

Weight

kg

Ground

Open contact

Ground

Open contact


GWT3-12/

200, 400, 630

10

200

400

630

75

85

42

42

3.15

8

16

8

20

40

II

-

12/nos

GWT3-12W/

200, 400, 630

10

200

400

630

75

85

42

42

3.15

8

16

8

20

40

IV

-

13/nos

GWT6-12W/

200, 400, 630

10

200

400

630

75

85

42

42

3.15

8

16

8

20

40

III

-

15/nos

(H)GW9-12/

200, 400, 630

10

200

400

630

75

85

42

42

3.15

8

16

8

20

40

II

-

12/nos

(H) GW9-12W/

200, 400, 630

10

200

400

630

75

85

42

42

3.15

8

16

8

20

40

IV

-

13/nos

GW4-40.5/

630, 1250

35

630

1250

185

215

80

90

16

31.5

40

80

III

CS-11

200/set

GW4-40.5W/

630, 1250

35

630

1250

185

215

80

90

16

31.5

40

80

III

CS-11

229/set

GW4-40.5DW/

630, 1250

35

630

1250

185

215

80

90

16

31.5

40

80

III

CS8-6D

260/set

GW4-40.5D/630, 1250

35

630

1250

185

215

80

90

16

31.5

40

80

III

CS8-6D

230/set

GW4-126/630, 1250

110

630

1250

570

215

250

355

16

31.5

40

80

III

CS14G

633/set

GW4-126D/630, 1250

110

630

1250

570

215

250

355

16

31.5

40

80

III

CS14G

695/set

GW4-126W/630, 1250

110

630

1250

570

215

250

355

16

31.5

40

80

III

CS14G

750/set

GW4-126DW/

630, 1250

110

630

1250

570

215

250

355

16

31.5

40

80

III

CS14G

810/set



Model description: G refers to isolating switch, HG refers to isolating switch of composite insulator, W refer to outdoor type, and T refers to the universal type. The number behind it is the serial number of design. W refers to stain resistant. D refers to grounding device provided. In terms of the fraction after dash, the numerator is rated voltage (kV), and the denominator is rated current (A).
