Cemented Porcelain Crossarm Insulators for high voltage lines are used for high voltage overhead transmission and distribution lines for insulating and supporting conductors. They can replace suspension insulators and pin insulators. The all porcelain crossarm insulators are made of solid puncture-proof porcelain parts and metallic accessories through adhesion, which have the advantages of good self-cleaning, simple maintenance, low cost of line materials, safe and reliable operation, etc.

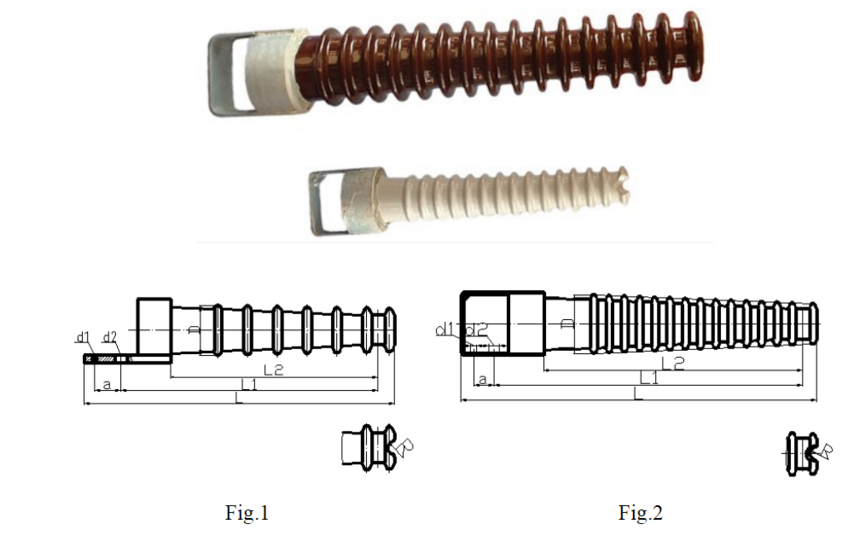

Main dimensions and properties ：

Model description: RA-Cemented Porcelain Crossarm Insulators, the numbers 2.5 and 5.0 behind it are the rated bending failure load kN, ET refers to externally adhesive, 165, 185 and 260 refer to the lightning impulse withstand voltage kV, N refers to standard creep distance, and L refers to long creep distance.
